Bridge and gantry crane safety monitoring system

Numberinformation sources bridge craneGantry craneMobile cranetower craneGantry craneCable craneMast crane1load lifting limiter Should be collectedShould be collectedShould be collectedShould be collectedShould be collectedShould be collected2load moment limiter Should be collectedShould be collectedShould be collectedShould be collected3Lifting height limiter/Lowering depth limiterShould be collectedShould be collected Should be collectedShould be collectedShould be collectedShould be collectedShould be collected4Running Travel LimiterShould be collectedShould be collected Should be collectedShould be collectedShould be collected5Amplitude limiter (amplitude indicator)Should be collectedShould be collectedShould be collectedShould be collected6Skew limiterShould be collectedShould be collected 7Interlocking protection safety deviceThreshold positionShould be collectedShould be collectedShould be collectedShould be collectedOperation interlocking between institutionsShould be collected Should be collectedShould be collectedShould be collectedShould be collected8Horizontal sensorSuitable for collection9Wind resistant and anti slip deviceShould be collectedShould be collectedShould be collectedShould be collected10Anemometer deviceShould be collectedShould be collectedSuitable for collectionShould be collectedShould be collectedShould be collectedShould be collected11Rotary locking deviceSuitable for collectionShould be collected12Same track collision prevention deviceShould be collectedShould be collectedShould be collectedShould be collected13Vertical sensor14Overspeed protection deviceShould be collectedShould be collectedShould be collectedShould be collected15Safety limit of power cable reelSuitable for collectionShould be collectedShould be collectedShould be collected16Detection of disc brake status of lifting drum17Through hole position detection device18Brake release of lifting mechanismSuitable for collectionSuitable for collectionShould be collectedsystem function1. Monitoring and recording of lifting weight2. Monitoring and recording of lifting height3. Run travel monitoring and record4. Interlocking protection (interlocking operation between mechanisms) monitoring and recording5. Monitor and record operation instructions6. Accumulated working hours and work cycle records7. Record of each work cycle time8. Monitoring of the brake status of the lifting mechanism9. Video monitoring and storage

Rapid manual response

free support

Customized solutions

GET QUOTE Online consultation

Product Details

Number	information sources		bridge crane	Gantry crane	Mobile crane	tower crane	Gantry crane	Cable crane	Mast crane
1	load lifting limiter		Should be collected	Should be collected		Should be collected	Should be collected	Should be collected	Should be collected
2	load moment limiter				Should be collected	Should be collected	Should be collected		Should be collected
3	Lifting height limiter/ Lowering depth limiter		Should be collected	Should be collected	Should be collected	Should be collected	Should be collected	Should be collected	Should be collected
4	Running Travel Limiter		Should be collected	Should be collected		Should be collected	Should be collected	Should be collected
5	Amplitude limiter (amplitude indicator)				Should be collected	Should be collected	Should be collected		Should be collected
6	Skew limiter			Should be collected				Should be collected
7	Interlocking protection safety device	Threshold position	Should be collected	Should be collected			Should be collected	Should be collected
7	Interlocking protection safety device	Operation interlocking between institutions	Should be collected	Should be collected			Should be collected	Should be collected	Should be collected
8	Horizontal sensor				Suitable for collection
9	Wind resistant and anti slip device		Should be collected	Should be collected			Should be collected	Should be collected
10	Anemometer device		Should be collected	Should be collected	Suitable for collection	Should be collected	Should be collected	Should be collected	Should be collected
11	Rotary locking device				Suitable for collection		Should be collected
12	Same track collision prevention device		Should be collected	Should be collected			Should be collected	Should be collected
13	Vertical sensor
14	Overspeed protection device		Should be collected	Should be collected			Should be collected	Should be collected
15	Safety limit of power cable reel		Suitable for collection	Should be collected			Should be collected	Should be collected
16	Detection of disc brake status of lifting drum
17	Through hole position detection device
18	Brake release of lifting mechanism		Suitable for collection	Suitable for collection			Should be collected

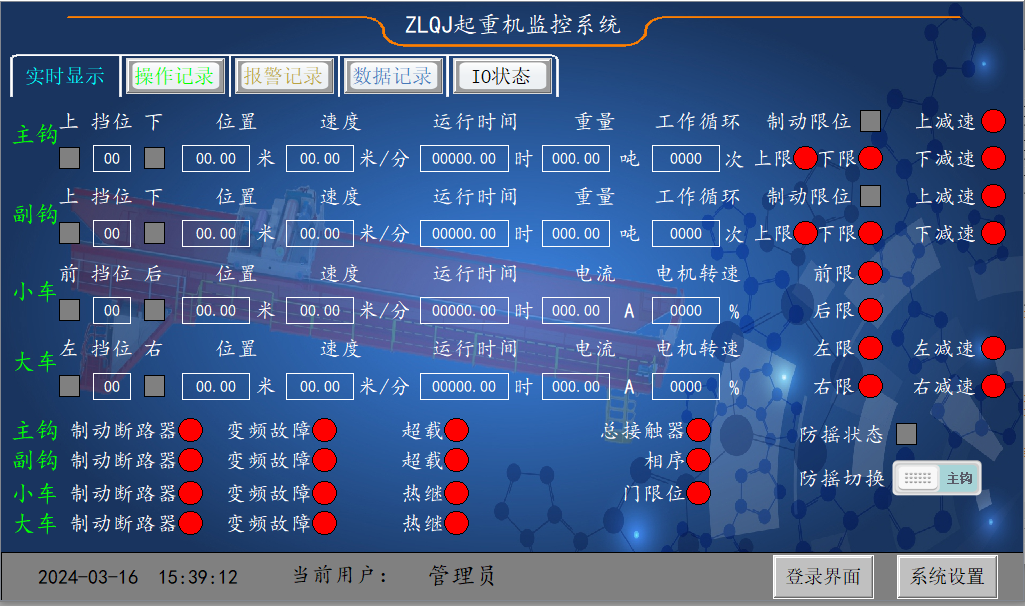

system function

1. Monitoring and recording of lifting weight

2. Monitoring and recording of lifting height

3. Run travel monitoring and record

4. Interlocking protection (interlocking operation between mechanisms) monitoring and recording

5. Monitor and record operation instructions

6. Accumulated working hours and work cycle records

7. Record of each work cycle time

8. Monitoring of the brake status of the lifting mechanism

9. Video monitoring and storage
